Shop Magnetic Drills the Easy Way
From compact low-profile drills to heavy-duty production machines, explore industry-leading magnetic drills with detailed specifications, side-by-side comparisons, and trusted support from industrial tooling experts.

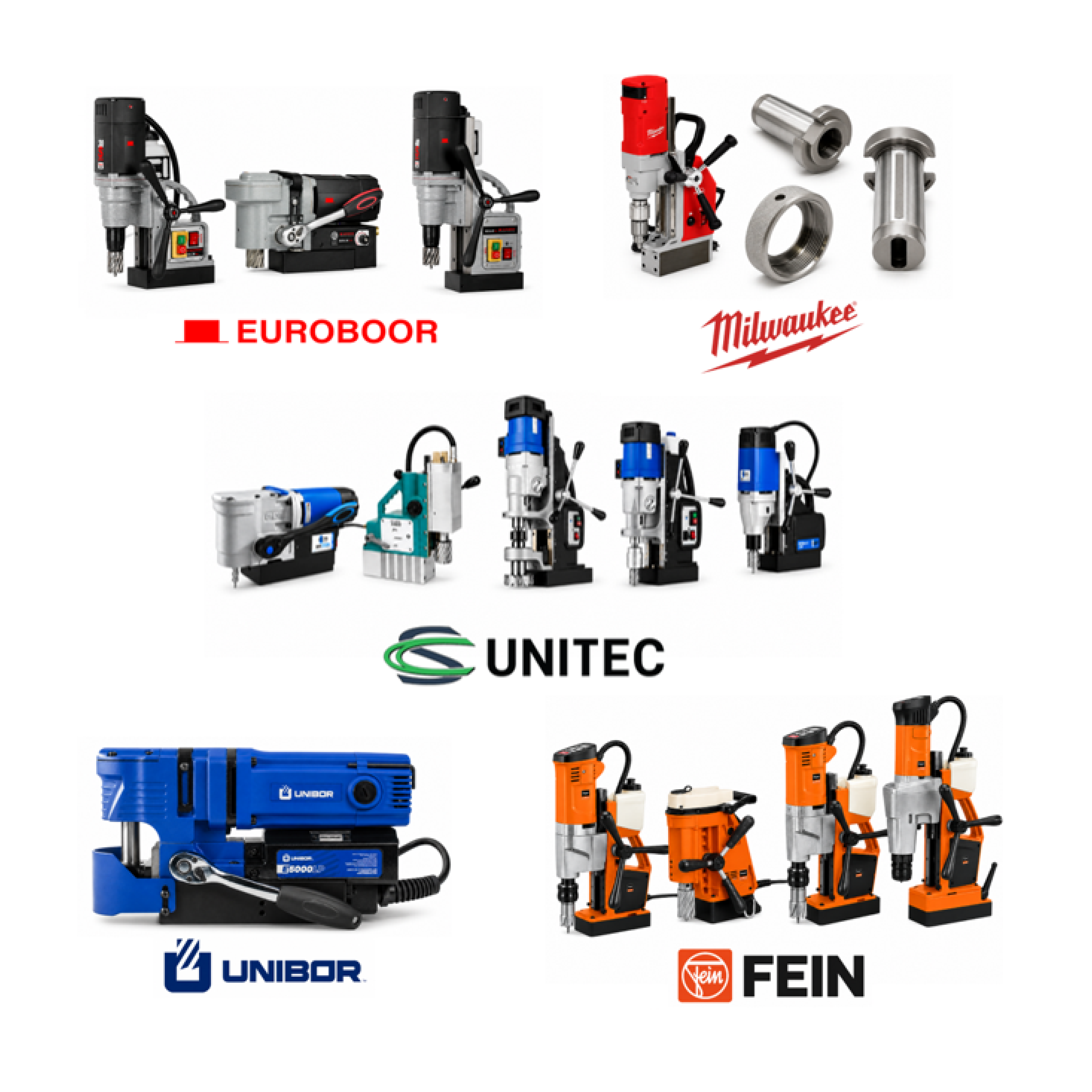

Shop By Brand
Compare Mag Drills
Compare key specs like capacity, weight, magnetic force, motor power, and tapping capability.
| Model | Annular Cutter Max. Dia. | Countersink Max. Dia. | Twist Drill Max. Dia. | Tapping Max. Dia. | Connection Type | Magnetic Force (Lbs) | Motor Power (Amps) | Weight (Lbs) | View |
|---|---|---|---|---|---|---|---|---|---|

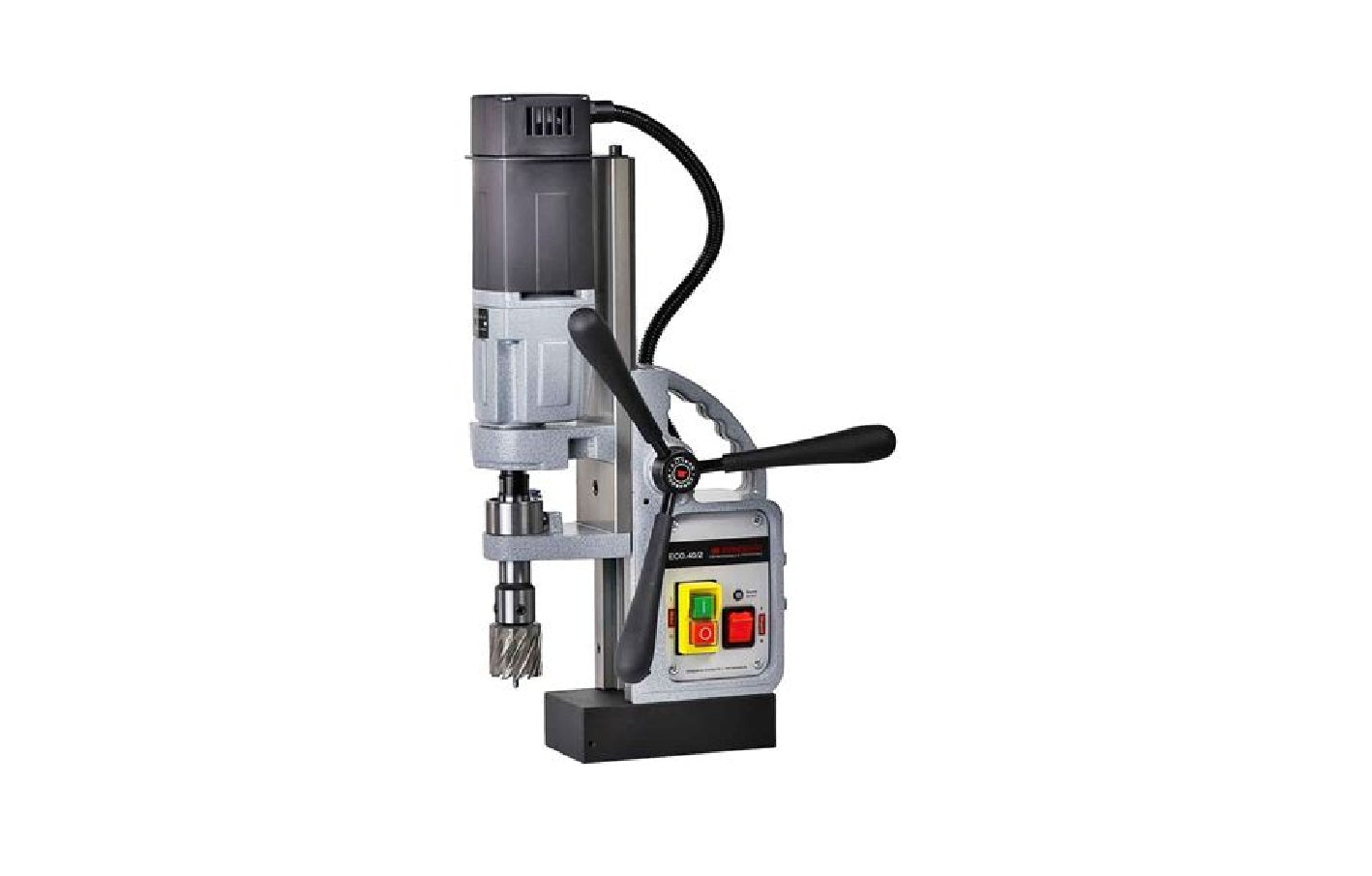

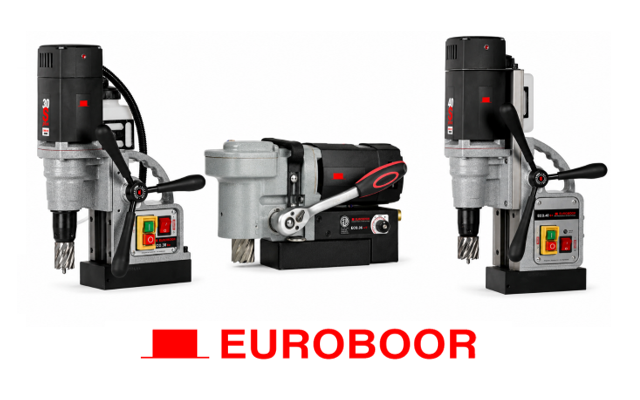

Euroboor ECO.30S+
|
1-3/16" | 1-3/8" | 1/2" | N/A | 3/4" Weldon | 2,645 | 8.2 | 18.7 | View |

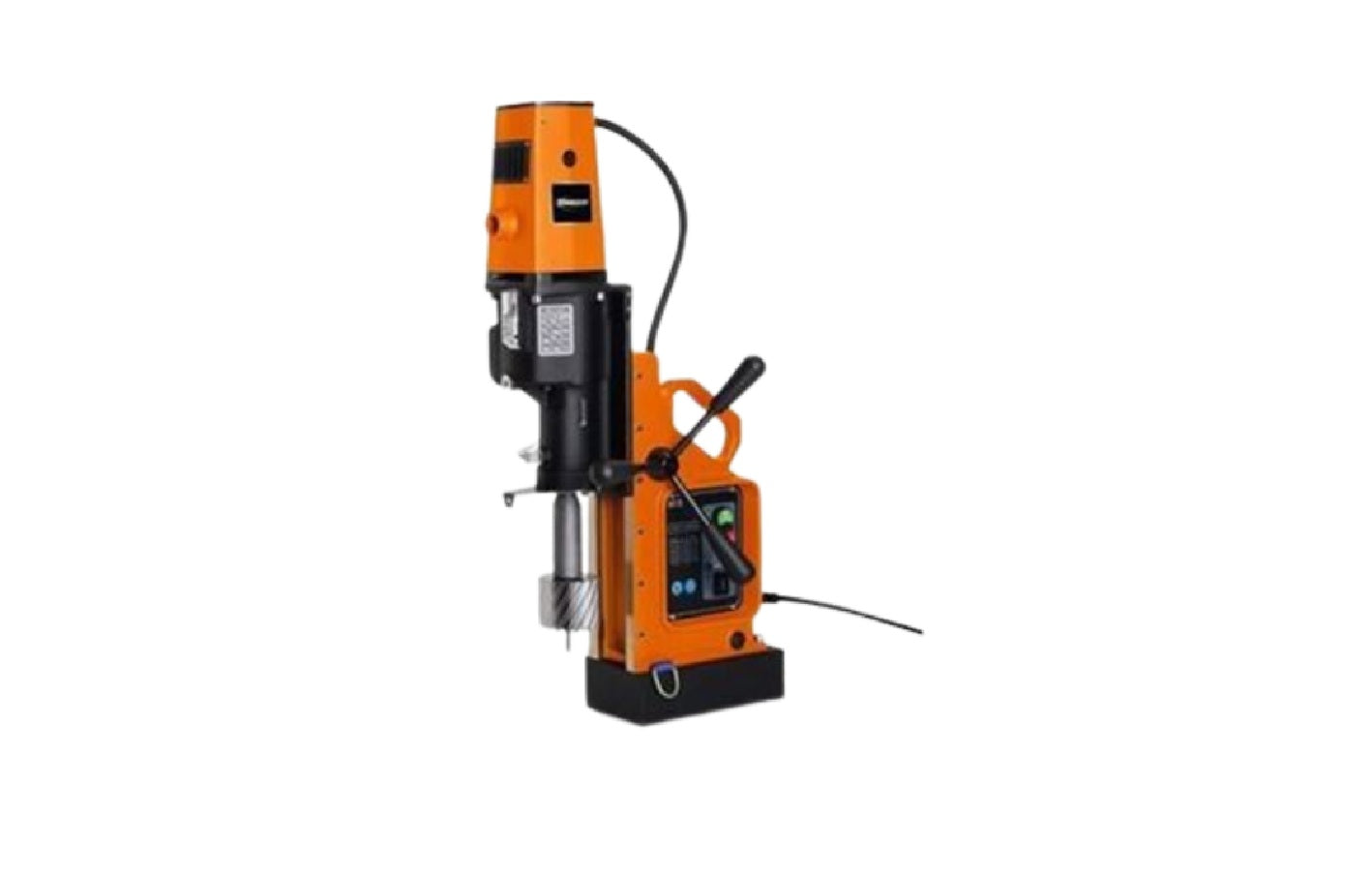

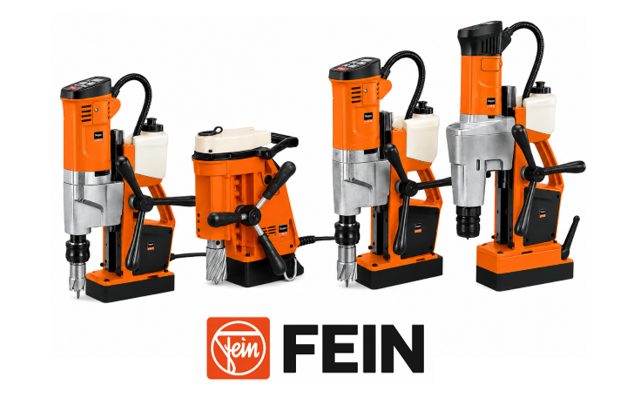

FEIN JMU 137-2 QW
|
1-3/8" | 1-1/4" | 5/8" | 1/2" | 3/4" Straight Shank | 2,136 | 9.2 | 24.47 | View |

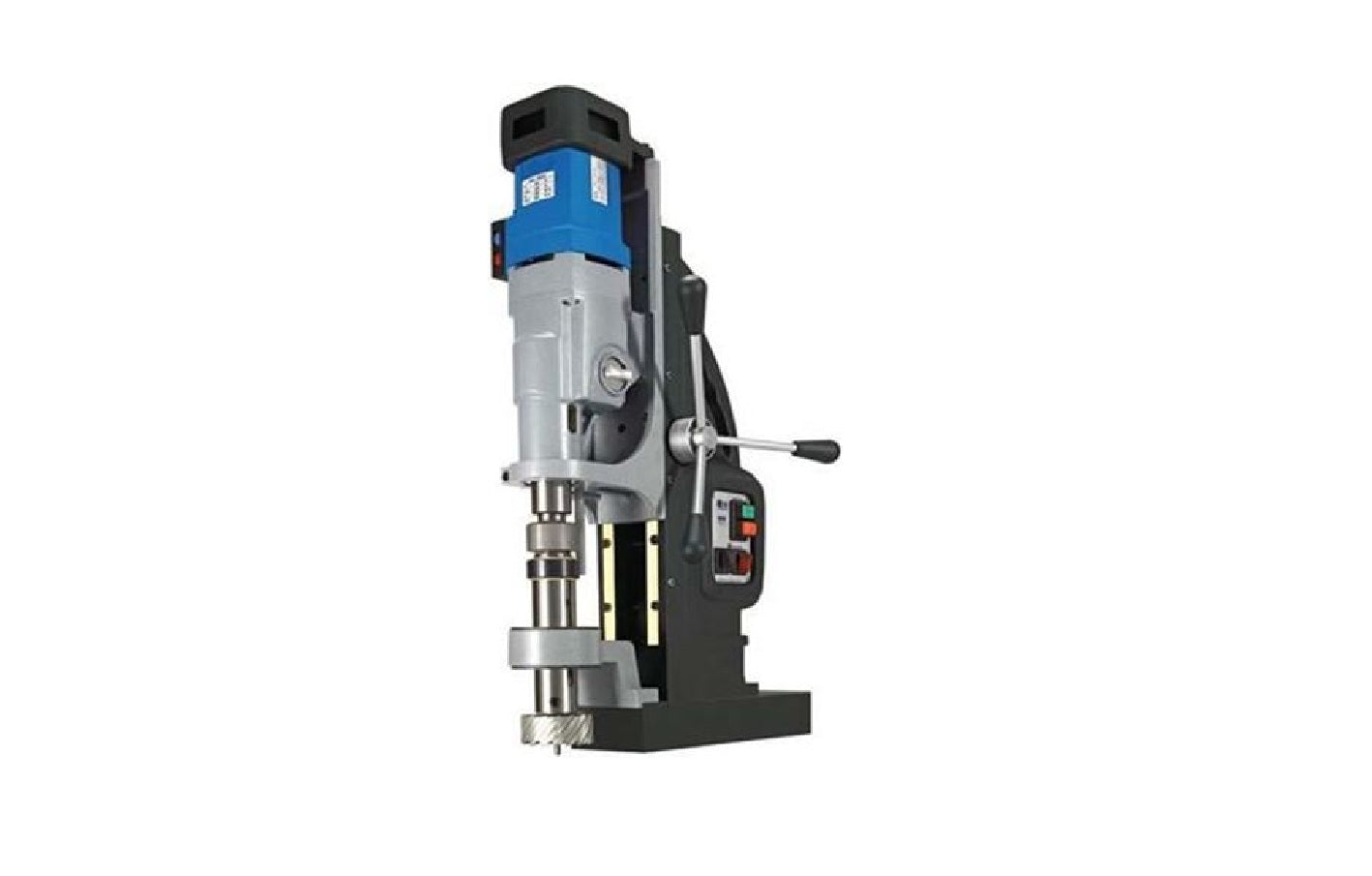

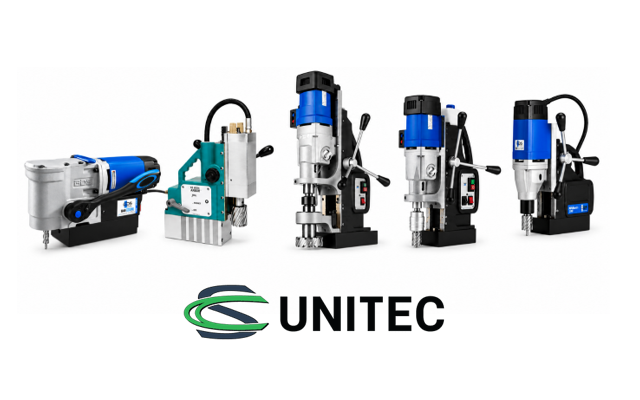

CS Unitec MABasic 200
|
1-3/8" | 2" | 1/2" | N/A | 3/4" Weldon | 3,080 | 8.2 | 27 | View |
Euroboor ECO.36+/T
|
1-7/16" | 1-9/16" | 9/16" | 1/2" | 3/4" Weldon | 2645 | 9.5 | 22.7 | View |
C.S. Unitec MAB 155PRO
|
1-1/2" | 2" | 1/2" | N/A | 3/4" Weldon | 2640 | 9.25 | 24.25 | View |
Euroboor ECO40S+
Best Value
|
1-9/16" | 1-3/4" | 5/8" | N/A | 3/4" Weldon | 3305 | 10.5 | 23.10 | View |
FEIN JHM Magforce
|
1-5/8" | N/A | N/A | N/A | 3/4" Straight | 2,023 | 9.2 | 28.88 | View |
CS Unitec MABasic 400
|
1-5/8" | 2" | 5/8" | N/A | 3/4" Weldon | 3,080 | 9.5 | 27 | View |
CS Unitec MAB 465
|
1-5/8" | 1-1/2" | 5/8" | 5/8" | 3/4" Weldon | 3,750 | 10.5 | 29 | View |

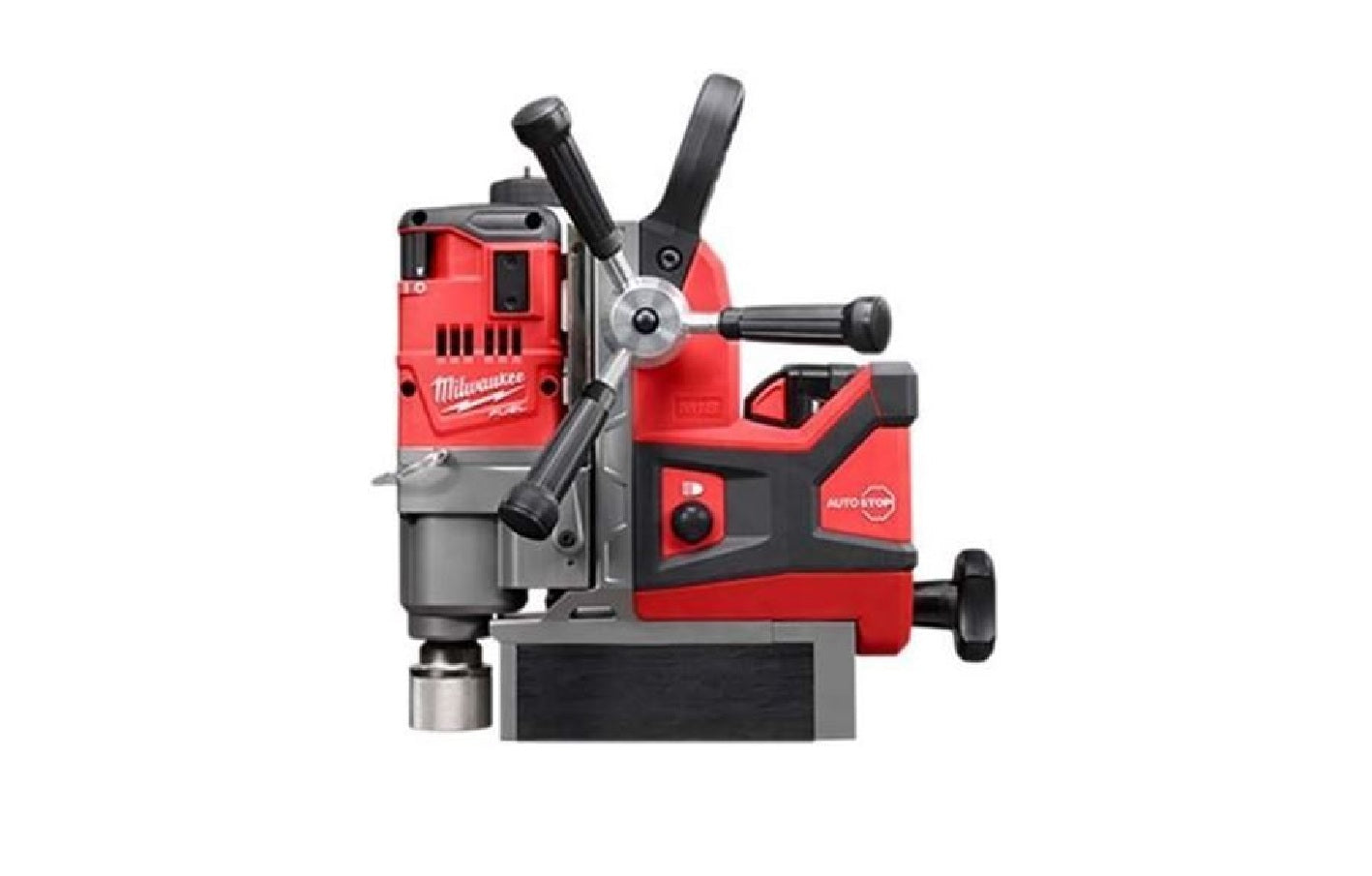

Milwaukee 4272-21
|
1-5/8" | 2" | 1/2" | N/A | 3/4" Weldon Quick Change | 1,800 | 13 | 30 | View |

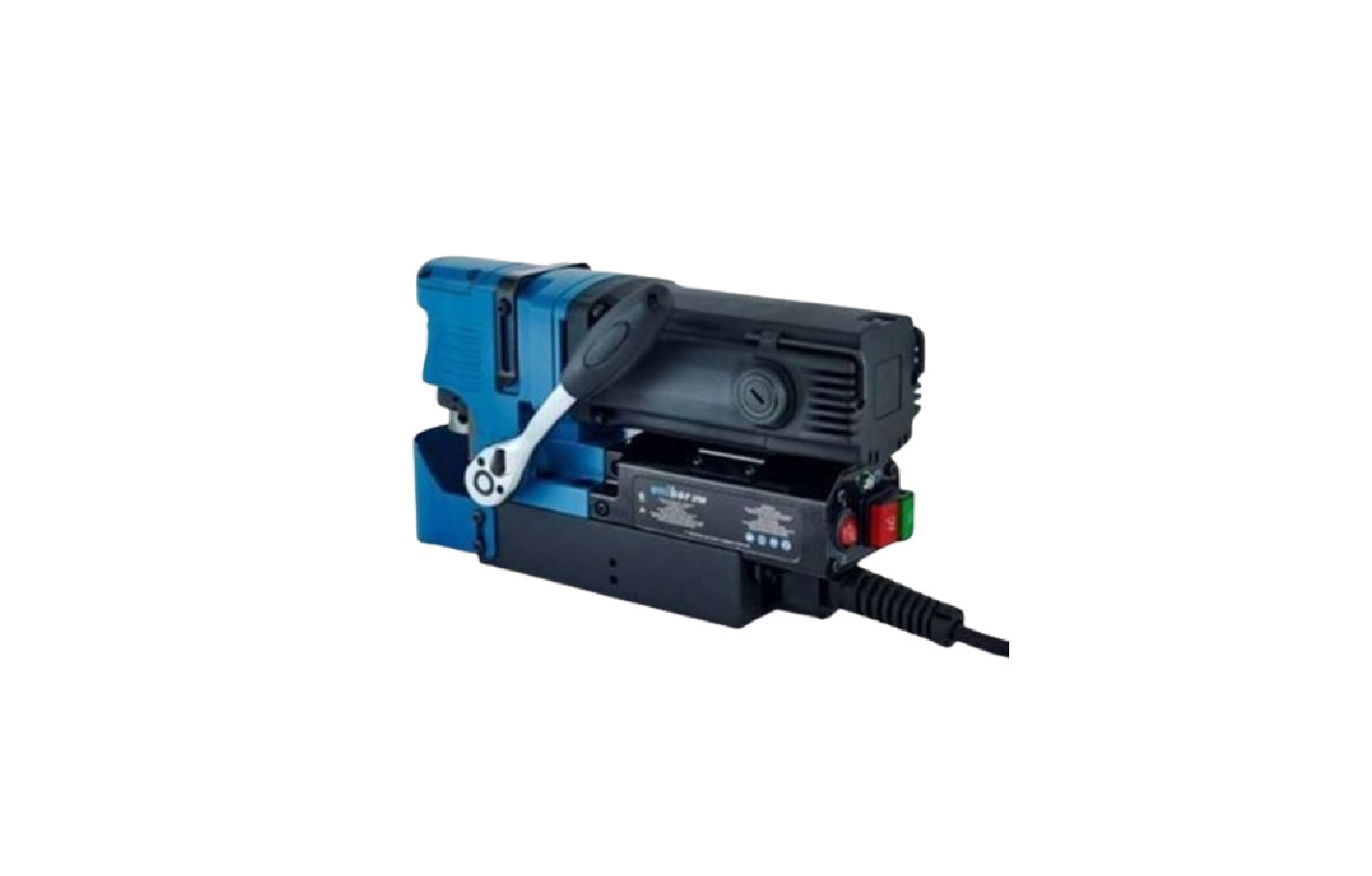

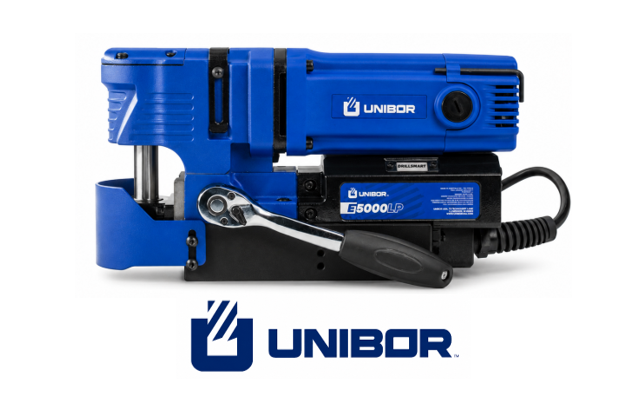

UNIBOR E5000 LP
Best Value
|
2" | 1-3/16" | N/A | N/A | 3/4" Weldon | 2,250 | 10 | 24 | View |
FEIN JCM 200 U
|
2" | 2" | 7/8" | 16mm | 3/4" Straight | 2,810 | 10 | 31.31 | View |
Euroboor ECO.50+/T
|
2" | 2-3/16" | 15/16" | 20mm | 3/4" Weldon | 4080 | 11.4 | 29.8 | View |
CS Unitec AB-4300-2
|
2-1/16" | N/A | 5/8" | N/A | 3/4" Weldon | 1,600 | 1.6 | 38 | View |
CS Unitec MAB 455
|
2-1/16" | 1-5/8" | 7/8" | N/A | 3/4" Weldon | 3,750 | 10.5 | 29 | View |
CS Unitec MAB 485
|
2-1/16" | 1-5/8" | 7/8" | 15/16" | 3/4" Weldon | 3,750 | 10.5 | 29 | View |
Euroboor ECO.60S+
Best Value
|
2-3/8" | 2-9/16" | 15/16" | N/A | 3/4" Weldon | 4080 | 14.5 | 28.4 | View |
FEIN JCM 256 U
|
2-1/2" | 2" | 1" | 20mm | 3/4" Straight | 3,147 | 10.8 | 35.05 | View |
CS Unitec MAB 525
|
2-1/2" | 2" | 1" | 15/16" | 3/4" Weldon | 4,500 | 14.5 | 35 | View |
Euroboor ECO.100S+/TD
Best Value
|
4" | 4-1/8" | 1-1/4" | 30mm | 1-1/4" Weldon | 6615 | 17.3 | 68.3 | View |
CS Unitec MAB 845
|
4-1/16" | 2" | 1-1/4" | 1-1/8" | 3/4" Weldon & 1-1/4" Weldon | 6,600 | 16 | 68 | View |
|
CS Unitec MAB 825
|
4-1/16" | 2" | 1-1/4" | 1-3/16" | 3/4" Weldon & 1-1/4" Weldon | 6,600 | 16 | 68 | View |
CS Unitec MAB 1300
|
6" | 3" | 1-3/4" | 1-5/8" | 1-1/4" (3/4" adapter included) | 23,600 | 20 | 112 | View |
Shop By Need
Low Profile for Confined Spaces
Heavy Duty for Large Hole Cutting
Maximum Magnetic Holding Power
