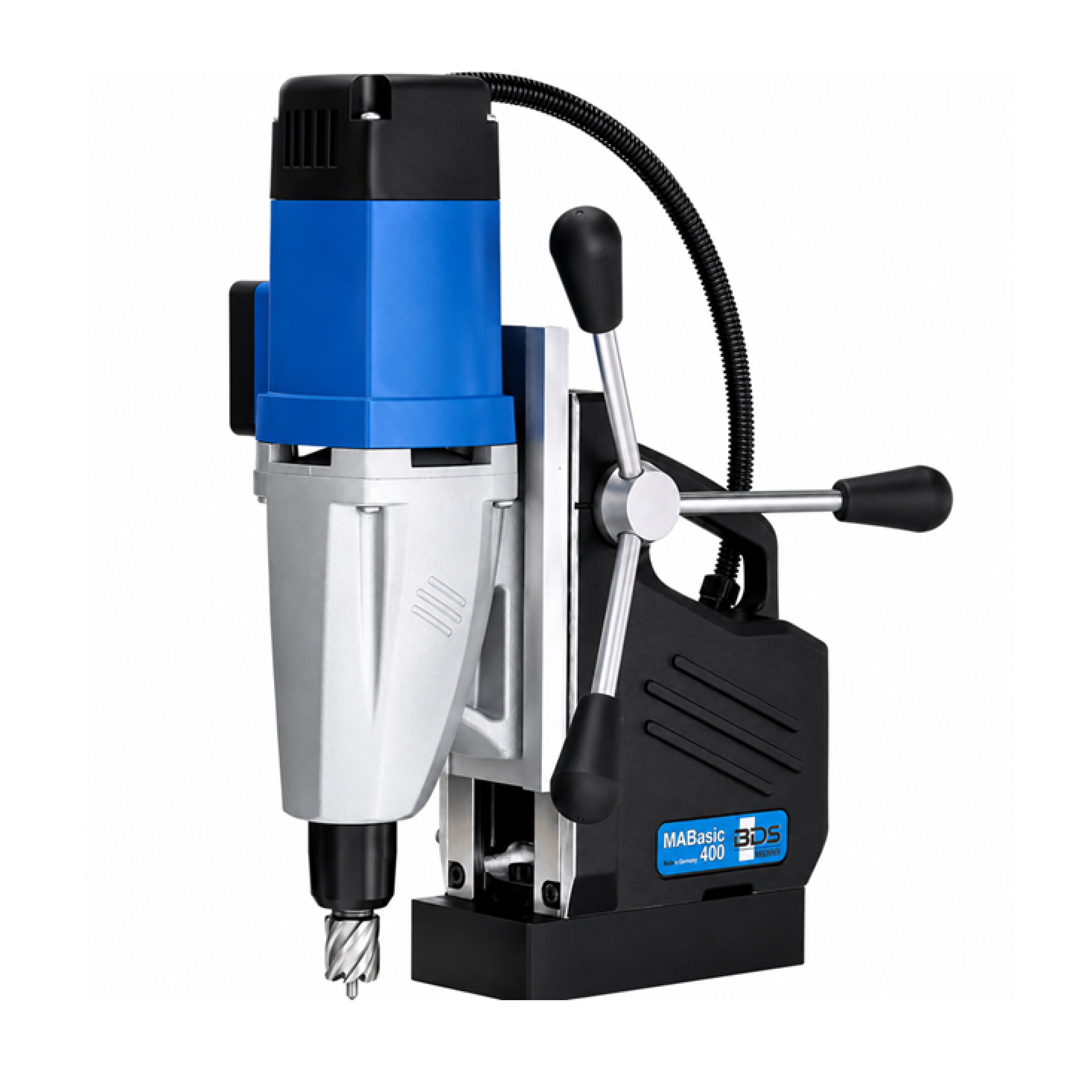

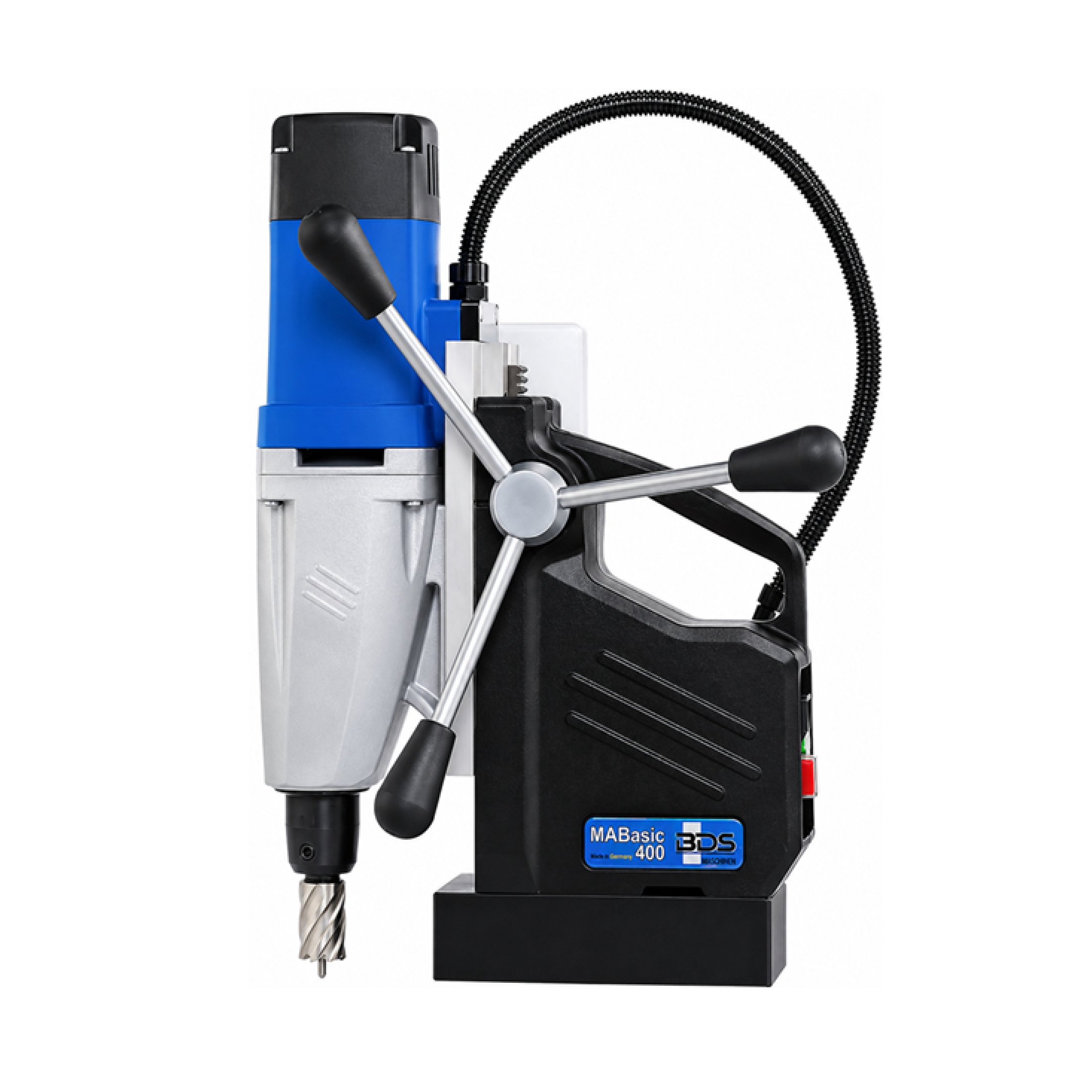

CS Unitec MABasic 400
$1,191.25 USD
Magnetic Force
3,080 LBS.
Motor Power
9.5 AMPS
Annular Cutter Dia. Capacity
1-5/8"
Pickup available at Shop location
Usually ready in 1 hour
Specifications
| Annular Cutter Diameter Range (in) | 1-5/8" |
|---|---|
| Countersink Diameter Range (in) | 2" |
| Twist Drill Diameter Range (in) | 5/8" |
| Connection Type (in) | 3/4" Weldon |
| Stroke (in) | 6-1/3″, 3-1/3″ with Geared Chuck |
| Magnet Dimensions (in) | 6-5/8" L x 3-1/3" W |
| Overall Dimensions (in) | 9-1/2" L x 6-1/2" W x 14" H |
| Magnetic Force (lb) | 3,080 |
| Weight (lb) | 27 |
| Gear 1 Load Speed (RPM) | 430 |
| Gear 2 Load Speed (RPM) | 760 |
| Motor Power (A) | 9.5 |
| Power Supply Type | Electric / Corded |
SKU: UNI-MABASIC 400
