3 Ton Hydraulic Bottle Jack

Features

Complies with ANSI/ASME B30.1 and PALD-1 Standard.
Heavy-duty bases are electrically welded providing a stable platform.
Hydraulic system is protected from damage by internal by pass-mechanism.
Industrial-duty construction permits use in extreme climates.
Lifting, pushing, spreading, bending, pressing or straightening capabilities.
Operating tempreature range from -4°F to 158°F.
Precision machined and plished cylinders provide non-abrasive, leak-free, durable performance.
Pump handle included.
Upright, horizontal or angled operating positions increase versatility.

Specifications

Base Dimensions (L x W) (In.)	4-9/16" x 2-13/16"
Head Diameter (In.)	2-3/8"
Load Capacity (Tons)	3
Maximum Height (In.)	14-3/8"
Minimum Height (In.)	7-1/2"
Piston Height (In.)	4-1/2"
Piston Lift (In.)	4-1/2"
Weight (Lbs.)	6

SKU: WMH-453303

$104.00

Qty:

Description

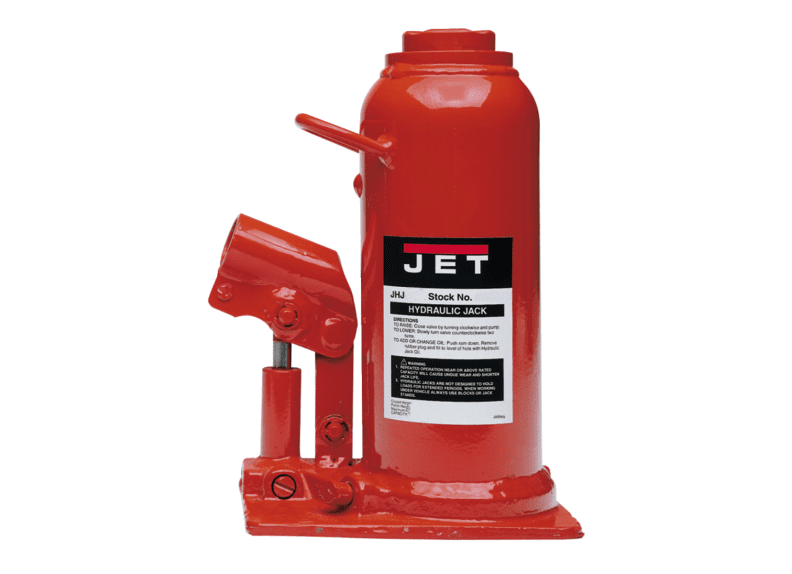

JHJ Series Hydraulic Bottle Jack. The pump piston and ram are chrome plated for added corrosive resistance increasing durability. Each JHJ model functions in upright, angled or horizontal positions for increased versatility. JHJ Series Hydraulic Bottle Jacks comply with ANSI/ASME B30.1 and PALD-1 standards.
