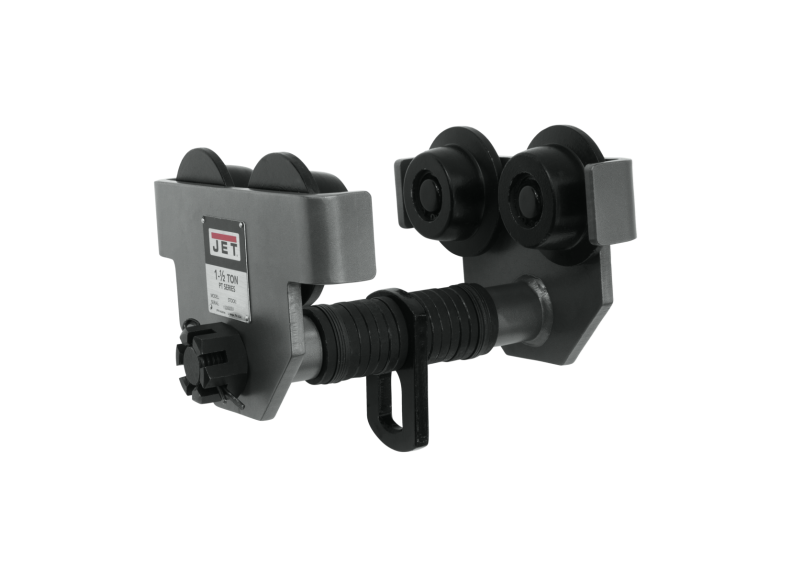

1-1/2-PT, 1-1/2 Ton Heavy-Duty Manual Beam Trolley

Features

Built-in bumper guards on the side plates increase safety and extend trolley life.
Complies with OSHA Regulations, ANSI / ASME B30.11 and B30.17 standards.
Easily adjustable to wide-flange H-beams, standard I-beams, or curved track with the included spacer washers.
Hardened large steel wheels and thicker double sealed lubricated ball bearings provide smooth movement.
Welded heavy gauge steel frame and powder coat finish provide maximum durability and protection.

Specifications

Capacity (Lbs.)	3300
Hook Mount Headroom (In.)	5-5/7
Load Capacity (Tons)	1-1/2
Maximum Beam Flange Width (In.)	8
Minimum Beam Curve Radius (In.)	43
Minimum Beam Flange Width (In.)	3-1/4-8
Minimum Beam Height (In.)	4
Weight (Lbs.)	41
Wheel Diameter (In.)	3-1/3
Max. Hook Size (W/in.)	1-1/3
Minimum Beam Height (In.)	4
Overall Dimensions (L x W x H / in.)	11 x 13-2/9 x 6-3/8

SKU: WMH-252015

$414.00

Qty:

Description

Heavy duty Manual Trolleys are available in capacities from 1/2 ton to 10 Tons. Built with heavy gauge steel for increased durability, the large steel wheels and thicker bearings provide smooth movement on a variety of beams. The built in bumper guards increase user safety and extend the life of the trolley. Each Manual Trolley conforms to OSHA regulations, and ANSI / ASME standards.
